Special Offer

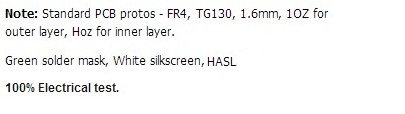

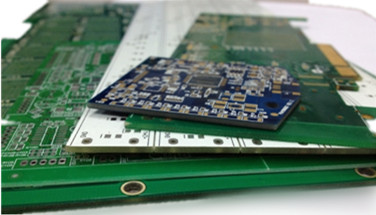

PCB Protos: 1 - 4 layer
FR-4 1.6mm, 1OZ for all layer, green solder mask/white silk screen, HASL.
Min. QTY is 5pcs
1 Layer | Board size (sqin) | |||
PCS | 0 - 5 | >5-10 | >10-15 | >15-20 |
5 | $7.0 | $8.5 | $12.0 | $13.5 |
10 | $6.0 | $7.0 | $8.0 | $9.0 |
15 | $5.0 | $5.5 | $6.0 | $7.0 |
20 | $5.0 | $5.5 | $6.0 | $6.5 |
2 Layer | Board size (sqin) | |||
PCS | 0 - 5 | >5-10 | >10-15 | >15-20 |
5 | $8.0 | $9.5 | $12.5 | $14.0 |
10 | $7.0 | $8.0 | $9.5 | $10.5 |
15 | $6.5 | $7.0 | $7.5 | $7.8 |
20 | $5.0 | $6.0 | $6.5 | $7.0 |
4 Layer | Board size (sqin) | |||
PCS | 0 - 5 | >5-10 | >10-15 | >15-20 |
5 | $20.0 | $22.0 | $25.0 | $26.0 |
10 | $12.0 | $13.0 | $14.0 | $15.0 |
15 | $9.0 | $9.5 | $10.2 | $11.0 |
20 | $7.0 | $8.5 | $9.5 | $10.5 |
Extra cost:
1. $25 FOR ENIG, $5 FOR LF HASL.
